Echo Engine

Quick start

From a plain echo to something of your own.

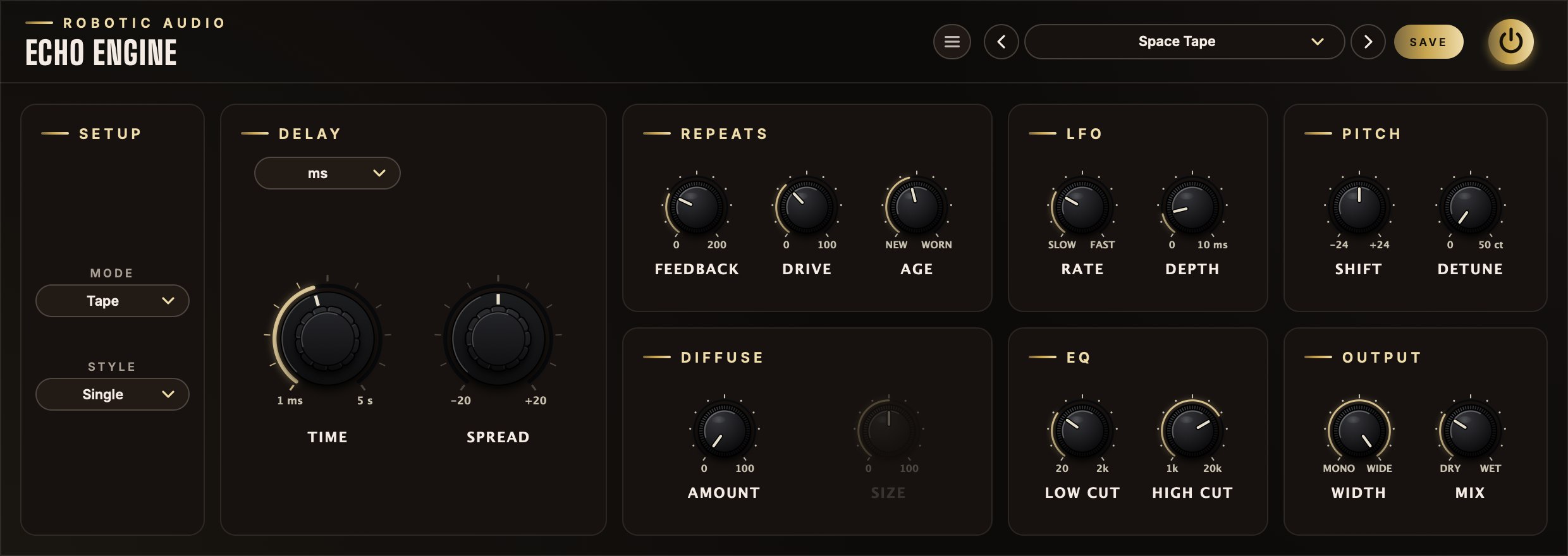

The window

Setup and time on the left, then six cards in the order you would shape the echoes.

Header

The preset bar (previous, next, the list, SAVE), the power button (bypass) and the menu (three lines) with this manual. Click the logo for the version and credits.

Setup

Mode, the character of the machine, over Style, how left and right relate.

Delay

Two large knobs, each under a menu. The left is always the delay time. The right changes with the Style: Spread, the right-hand time, or Ratio.

Repeats

Feedback, Drive and Age.

LFO

Rate and Depth of a slow wobble on the delay time.

Pitch

Shift, in semitones, and Detune, in cents.

Diffuse

Amount and Size of the smear that turns echoes into a wash.

EQ

Low Cut and High Cut for the echoes.

Output

Width of the echoes and the dry/wet Mix.

Signal flow

A delay line inside a loop, and everything else placed inside that loop.

Follow the loop clockwise from the +. The input (pushed by Drive) and the returning feedback are added together and recorded into the delay line, through the saturation of the chosen Mode. After the delay time the sound is read back, optionally pitch-shifted, worn by the Mode's character, filtered and diffused. That is one echo.

From there it goes two ways: out to your ears, through Width and Mix, and back round the loop, scaled by Feedback, to become the next echo.

There are two of everything in the picture, one for the left and one for the right. How the two feed each other is the Style. The dry sound never passes through any of it.

Mode

Which machine the echoes are recorded on.

The Mode decides how the delay line treats what is written into it and what comes back out. It sets the curve of the saturation, and what AGE means.

Clean

Transparent, hi-fi repeats: each echo is a faithful copy, only quieter. The soft limiter is gentle at normal levels and steps in firmly only when Drive or Feedback push hard. Age does nothing and is greyed out.

Tape

A tape echo. What is recorded is compressed (3:1 above −12 dB, quick to grab and slow to let go), given the head bump of a playback head (a gentle +2 dB around 100 Hz) and saturated lopsidedly. Every pass also loses a little treble. Loud echoes come back rounder and thicker; the low end blooms as the repeats pile up.

Lo-Fi

An early digital delay. The loop clips hard, and Age lowers the quality of the "converter": fewer samples per second and fewer bits per sample, giving the gritty, ringing aliasing and the grainy tails of 1980s rack units.

What Age does

Like everything in the loop, Age compounds: each repeat is recorded on the worn machine again, so the damage grows from echo to echo.

Style

How the left and right delay lines are wired together.

Single

One time for both sides: a classic mono-compatible echo. The second big knob is Spread, which makes the right side later than the left (or earlier) by up to 20 ms, split evenly around the set time. A few milliseconds are enough to pull the echoes out of the centre and make them wide.

Dual

Two independent delays. The second big knob is the right-hand time, with its own ms / Note / Dotted / Triplet menu. Set a quarter note on one side and a dotted eighth on the other for interlocking rhythms.

Ratio

The right-hand time is a percentage of the left (the Ratio knob, 1 to 100 %), so both follow the Time knob together. The feedback is shared, so each side's echoes reappear in the other at the other's time: the pattern fills in and becomes denser with every round. Ratios that are not simple fractions, like 61.8 %, never line up and give an even, rolling scatter.

Ping-Pong

The input is summed to mono and enters the left line only; the feedback is crossed. The first echo is on the left after the left time, the next on the right after the right time, and so on, bouncing. With equal times it is an even bounce; with different times it limps. Width at 0 % cancels the bounce.

Delay time

Free in milliseconds, or locked to the song.

Time mode

The menu above each time knob. ms: a free time. Note, Dotted, Triplet: a note value at the host's tempo; dotted is one and a half times as long, triplet two thirds. ms · Note · Dotted · Triplet

Time (ms)

The delay time. The knob gives the short times the most travel. 1 ms … 5 s

Time (synced)

The note value, shown the way its mode writes it: 1/8, 1/8. (dotted) or 1/8T (triplet). 1/64 … 8/1

Spread

Single style: right minus left. −20 … +20 ms

Time R

Dual and Ping-Pong: the right-hand time, with its own mode menu. as Time

Ratio

Ratio style: the right-hand time as a share of the left. 1 … 100 %

Synced times follow the host's tempo, tempo changes included. Without a host tempo (the standalone app) they use 120 BPM. However long the note value and however slow the song, a delay is never longer than 30 seconds.

Changing the time while it plays

The delay time does not jump: it glides to a new value over about 80 ms, the way a tape machine's motor takes a moment to change speed. While it glides, everything already in the delay line is played faster or slower, so the echoes bend in pitch and then settle. Sweep the Time knob during a held note for the classic tape-echo dive and rise.

Very short times, from 1 to about 30 ms, are no longer heard as echoes. With some feedback they become a comb filter: a metallic, pitched resonance. Add the LFO for flanging and chorus.

Repeats

How many echoes, how hard they are hit, and how worn the machine is.

Feedback

How much of each echo is sent round the loop to make the next. At 0 % there is a single echo. Below 100 % each echo is quieter than the last. At 100 % they would go on for ever; above it they grow. 0 … 200 %

Drive

Pushes the input into the Mode's saturation before it is recorded, like turning up the record level: up to ten times (+20 dB) louder going in, with the level partly brought back down afterwards. At 0 % it is out of the way. Drive colours only the echoes; the dry sound stays clean. 0 … 100 %

Age

How worn the machine is; what that means depends on the Mode. Greyed out in Clean. 0 … 100 %

How long the echoes last

The filters, the tape's treble loss and the diffusion take a little away on every round as well, so in practice the echoes die somewhat sooner than the table says.

Past 100 %: self-oscillation

Above 100 % every round is louder than the one before. In a plain digital delay that would run away to full-scale noise. In Echo Engine the recording stage cannot go above its ceiling, so the loop grows until the Mode's saturation holds it there and then sustains: a dense, howling, endlessly regenerating texture that keeps going after the input stops. Tape compresses and smooths it into a roar; Lo-Fi turns it into a buzzing wall; Clean holds it most politely. Bring Feedback back under 100 % to let it die away.

LFO

A slow wobble on the delay time.

Rate

The speed of the wobble. Greyed out while Depth is 0. 0.05 … 10 Hz

Depth

How far the delay time swings either side of its setting. 0 … 10 ms

A smooth (sine) oscillator moves the point where the delay line is read. A moving read point changes the pitch of what is read, slightly up while the delay shortens and slightly down while it lengthens, so the echoes gain a gentle vibrato that thickens them and sets them apart from the dry sound.

The right side's wobble runs a quarter of a cycle apart from the left's. Left and right are therefore never detuned the same way at the same moment, which turns the vibrato into stereo movement.

In Tape mode, Age adds its own, random movement on top of the LFO: wow and flutter.

Pitch

Echoes that climb, fall or shimmer.

Shift

Transposes the echoes, in whole semitones. Because the shifter is inside the loop, every repeat is shifted once more than the one before. −24 … +24 st

Detune

Fine tuning that pushes the left side up and the right side down by this many cents. It widens the echoes and, round the loop, makes them drift apart. 0 … 50 ct

With Shift at +12, the first echo is an octave above the note, the second two octaves, the third three: a staircase. At +7 it climbs in fifths; at −12 it sinks an octave at a time. Combine a shift with Diffusion and a high Feedback, and the separate steps blur into a halo of rising harmonics above the sound: shimmer.

How it shifts

The shifter is granular. It chops the echo into short, overlapping grains (about 80 ms each) and plays each one faster or slower, fading every grain in and out. The grains start at slightly random moments, so the overlaps never line up the same way twice: the copies blur into a soft, chorus-like shimmer instead of the metallic ringing a simpler shifter produces, and the attacks of notes stay intact.

The shifter needs a moment to do its work. Echo Engine reads the delay line that much earlier to make up for it, so shifted echoes still land exactly on time. With Shift at 0 and Detune at 0 the shifter is switched out entirely and costs nothing; it fades in and out when you turn it on and off.

Diffuse

Smears each echo, from a softened edge to a reverb-like cloud.

Amount

How much of the smear is blended in, and how strong it is. 0 … 100 %

Size

How far each echo is spread out in time: small is tight and slightly metallic, large is spacious. Greyed out while Amount is 0. 0 … 100 %

The diffuser is a chain of six all-pass filters. An all-pass leaves the balance of low and high frequencies alone but delays different parts of the sound by different amounts, so a sharp click comes out as a short burst of many smaller ones. The six stages have lengths that are not multiples of one another (from about a millisecond at the smallest Size to tens of milliseconds at the largest), and the right side's are 7 % longer than the left's, so the smear is different in each ear.

Because it sits in the loop, each repeat is smeared again. A little softens the attack of the echoes so they sit behind the dry sound. A lot, with a high Feedback, dissolves the separate repeats into a continuous wash: with a short delay time it behaves like a small reverb, with a long one like a cloud that swells after each note.

EQ

Two gentle filters that shape how the echoes age.

Low Cut

Removes lows from the echoes, at 6 dB per octave. Keeps the repeats from muddying the bass. 20 Hz … 2 kHz

High Cut

Removes highs from the echoes, at 6 dB per octave. Makes them darker and further away. 1 … 20 kHz

The slopes are gentle on purpose. Both filters are in the loop, so a repeat that has been round three times has been filtered three times: the first echo is only slightly darker, and each one after it is darker and thinner still. This is how echoes behave in the real world and in tape machines, and it is why a filtered delay sits behind a vocal instead of fighting it.

A High Cut around 3–6 kHz with a Low Cut around 200–400 Hz gives the band-limited, "telephone" repeats of vintage units. Opening both fully gives modern, full-range copies.

Output

Where the echoes sit, and how loud.

Width

The stereo width of the echoes: 100 % leaves left and right as they are, 0 % folds them to the centre. It works on the echoes only and never narrows the dry sound. 0 … 100 %

Mix

The balance between the dry sound and the echoes: 0 % is dry only, 100 % echoes only. As the echoes come up, the dry sound goes down. 0 … 100 %

As an insert, a Mix of 20–40 % is typical. On a send or return track, set Mix to 100 %, so the track carries only echoes, and set the amount with the send level.

Echo Engine adds no latency. It tells the host how long its echoes take to die away, so a bounce or a freeze does not cut the tail off.

Presets

Fifteen starting points.

Press SAVE in the header to keep your own. Your presets join the list; the preset menu has Save As, Delete and Open Folder, which shows where they are kept as files you can back up or share. An asterisk after the preset's name means you have changed something since loading it. Every knob and menu is a host parameter and can be automated.

Recipes

Settings to start from.

Specifications

The numbers.
